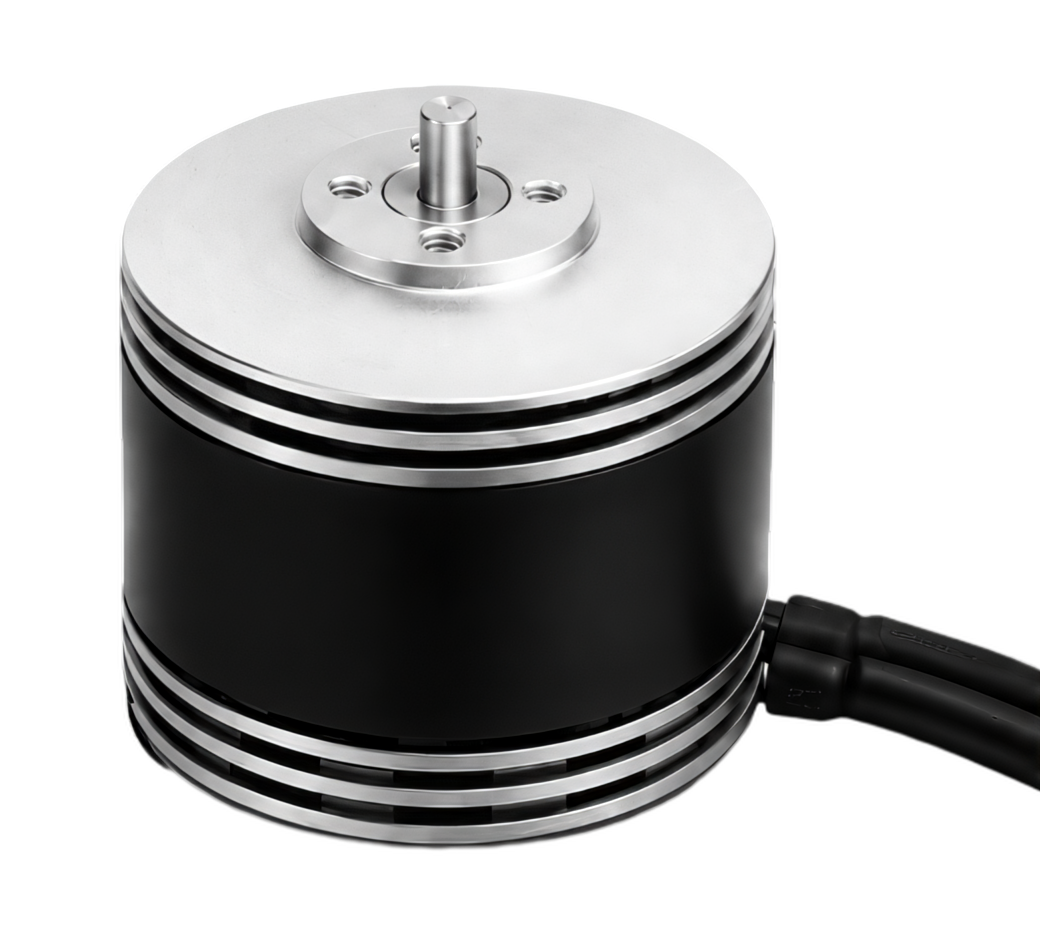

KRATOZ POWER SERIES
HIGH POWER
UAV MOTORS
Built for Maximum Efficiency
Lightweight UAV motors engineered for high thrust, efficient power delivery, and extended flight performance across industrial and agricultural applications.
KEY ADVANTAGES
Lightweight Design
Reduced weight for improved maneuverability and longer flight duration.
High Efficiency
Optimized energy conversion for stable and efficient power output.
High Thrust
Strong propulsion performance for demanding UAV operations.
Reliable Performance
Engineered for durability and stable operation in harsh environments.
PERFORMANCE HIGHLIGHT
205g
ULTRA LIGHTWEIGHT
4.85kg
MAX THRUSH
>90%
HIGH EFFICIENCY
Built to deliver strong power with minimal weight, helping your UAV achieve longer flight time and superior mission performance.
TECHNICAL PERFORMANCE DATA
Tested under controlled environments for reliable operational analysis.
| Throttle (%) | Current (A) | Power (W) | Thrust (kg) | Efficiency (g/W) |
|---|---|---|---|---|
| 30% | 1.5 | 36 | 0.57 | 15.83 |
| 40% | 3.4 | 81.6 | 0.99 | 12.13 |
| 50% | 6.4 | 153.6 | 1.53 | 9.96 |
| 55% | 8.3 | 199.2 | 1.82 | 9.14 |
| 60% | 10.4 | 249.6 | 2.10 | 8.41 |
| 65% | 13 | 312 | 2.45 | 7.85 |
| 70% | 15.7 | 376.8 | 2.76 | 7.32 |
| 75% | 19 | 456 | 3.13 | 6.86 |
| 80% | 22.7 | 544.8 | 3.50 | 6.42 |
| 85% | 26.3 | 631.2 | 3.79 | 6.00 |
| 90% | 30.2 | 724.8 | 4.13 | 5.70 |
| 95% | 35 | 840 | 4.48 | 5.33 |
| 100% | 40 | 960 | 4.85 | 5.05 |
TEST ENVIRONMENT
APPLICATIONS
Agriculture
Efficient heavy-duty propulsion for agricultural drones.
Industrial
Stable performance for industrial operations.
Mapping
Precision flight control for surveying missions.
Mapping
Precision flight control for surveying missions.
Heavy Lift
High thrust capability for payload-intensive applications.
Surveillance
Reliable long-duration flight operations.
Looking for High-Performance UAV Motors?
Contact our team for technical specifications, integration support, and product inquiries.
